NRF52832 Bluetooth Low Power BLE 5.0 Data transmission master/slave integrated module TS-M01
TS-M01 adopts high-precision four-layer board design, leading to nRF52832 available IO for all users, adopts PCB antenna and IPEX interface dual antenna optional design, the module works in 2.4GHz ISM band, in line with BQB, FCC, CE, ROHS and other certification specifications. It has the characteristics of low power consumption, small volume, long transmission distance and strong anti-interference ability.
#Transparent Transmission
#Low Power
#Low Cost
| Model No. | TS-M01 |
| Bluetooth Chipset | NRF52832 |
| Bluetooth Version | Bluetooth 5.0 |
| TX Power | -20~+4dBm |
| Receiving sensitivity | -96dBm |
| Pin/IO | 34/29 |
| Interface | UART |
| Operating temperature | -40~+85℃ |
| Operating voltage | 1.8~3.6V |
| Antenna | PCB/IPEX |
| Distance | 100m |

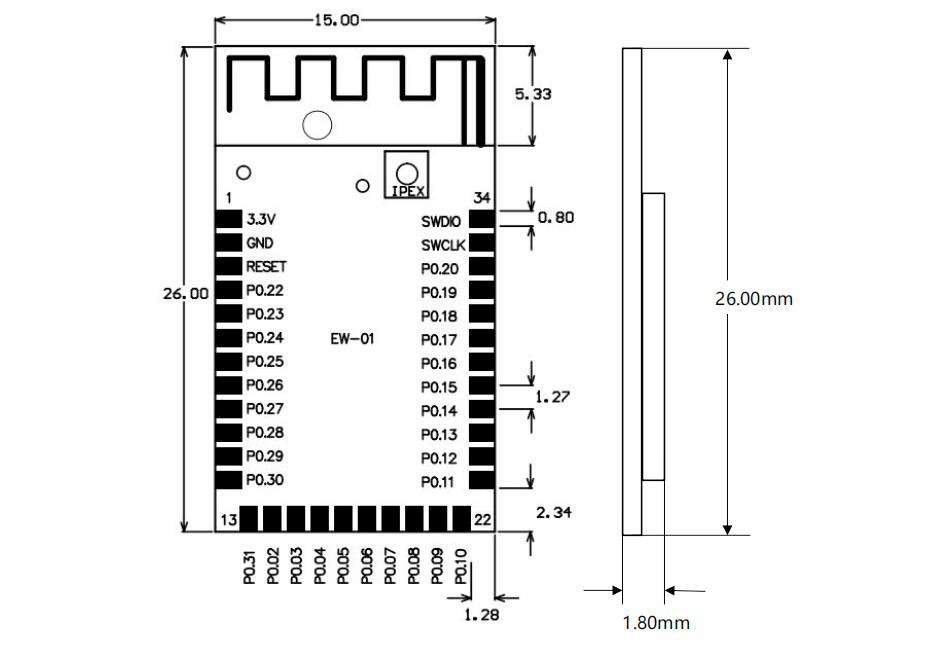

| Size | 26*15*1.8mm |
| Certification | CE, FCC |
| Function | Transparent transmission as Master or Slave |
| Model No. | TS-M01 |
| Bluetooth Chipset | NRF52832 |
| Bluetooth Version | Bluetooth 5.0 |
| TX Power | -20~+4dBm |
| Receiving sensitivity | -96dBm |
| Pin/IO | 34/29 |
| Interface | UART |
| Operating temperature | -40~+85℃ |
| Operating voltage | 1.8~3.6V |
| Antenna | PCB/IPEX |
| Distance | 100m |
| Size | 26*15*1.8mm |
| Certification | CE, FCC |
| Function | Transparent transmission as Master or Slave |
